Khoom Taw Qhia
Technical Specifications
|
Hom |
WOODWARD |
|
Qauv |
9905-387 |
|
Kev piav qhia |
PROACT DRIVER MODULE |
| Lub zog input voltage | DC 18-32 VDC |
| Tswj lub teeb liab tawm tswv yim | 0-200 mA |
| Hom kev tswj lub teeb liab | Txhawb cov tswv yim digital / analog (± 3 VDC, PWM, thiab lwm yam tshaj tawm) |
|
Keeb kwm |
Teb chaws USA |
|
Dimension |
30*30*15m |
|
Qhov hnyav |
0, 85kg |
Khoom Paub meej
Module 9905-387 belongs rau ib chav tsav nyob rau hauv Woodward ProAct III (Model III) system. Tus qauv code lub ntsiab lus yog raws li nram no:
9905: Cov qauv yooj yim ntu ntawm Woodward tswj / tsav tsev. -387: Cov qauv tshwj xeeb tsav tsheb qhia tias Model III siv 0-200 mA tswj cov teeb liab tawm tswv yim thiab ntiav MS connector interface.
Woodward ProAct series suav nrog:
Tsav Tsheb: Tau txais kev tswj cov teeb liab thiab tso tawm cov lus qhia tsav tsheb;
Actuator: Kho lub cav roj mov, throttle, thiab lwm yam ua haujlwm raws li lub teeb liab.
Controller/Main Control Unit: Lub luag hauj lwm rau tag nrho cov tswj lub tswv yim, kev tawm tswv yim ua, thiab kev sib txuas lus system.
9905-387 belongs rau ntu tsav tsheb. Los ntawm kev ua cov teeb liab thiab lub zog amplification, nws muab cov zis uas ua raws li cov lus qhia nkhaus rau tus actuator.
Hais txog ProAct™ III thiab ProAct IV
Yog xav paub ntxiv,thov hu rauinfo@htechplc.com.
Conatct

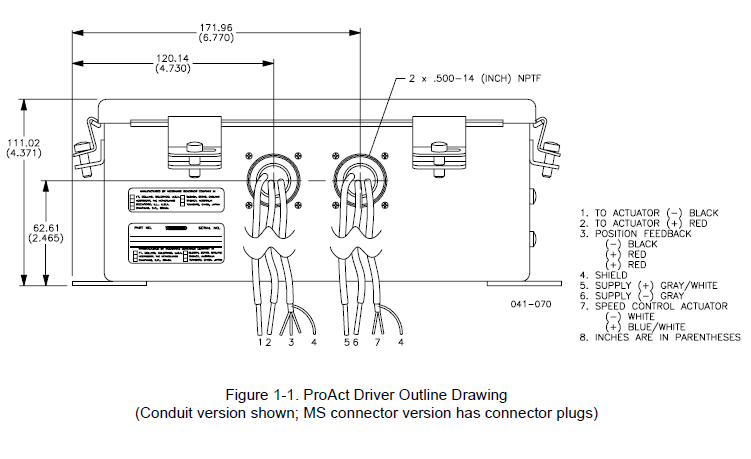

ProAct ™ III thiab ProAct IV tsav tsheb hloov pauv 0-200 mA lossis 4-20 mA tswj lub teeb liab los ntawm Woodward hluav taws xob tswj rau hauv ib txoj haujlwm actuator tshwj xeeb.
Cov neeg tsav tsheb ProAct xav kom muaj hluav taws xob sib cais ntawm 20-32 Vdc. Cov khoom siv yuav tsum muaj peev xwm muab kev txhawb nqa 10 A thiab qhov siab tshaj 20 A txog li ob vib nas this rau ob tus tsav tsheb ProAct III thiab ProAct IV.
Lub ProAct III actuator muab txog li 14 J (10 ft-lb) ntawm kev ua haujlwm kom txav cov roj teeb ntawm lub cav. ProAct IV actuator muab kev ua haujlwm txog li 27 J (20 ft-lb) ntawm kev ua haujlwm. Cov actuators tig 75 degrees, thiab lawv muaj cov lus tawm tswv yim.
Lub cav ruaj khov thiab cov lus teb tau teeb tsa los ntawm cov cuab yeej tswj, tsis yog los ntawm tus actuator thiab tsav tsheb. Ua raws li cov lus qhia rau kev tswj cov cuab yeej thaum teeb tsa lub cav tswj qhov system.
| Tus qauv Actuator | Ua hauj lwm tso zis | Tshooj Naj Npawb (CW to Max *) |
Tshooj Naj Npawb (CCW to Max *) |
| ProAct III MS connector |
14 J (10 ft- lb) | 8405-009 | 8405-011 |
| ProAct III conduit haum |
14 J (10 ft- lb) | 8405-010 | 8405-012 |
| ProAct IV MS connector |
27 J (20 ft - lb) | 8405-013 | 8405-015 |
| ProAct IV conduit haum |
27 J (20 ft - lb) | 8405-014 | 8405-016 |
* "CW [CCW] mus rau Max" yog hais txog cov kev taw qhia uas lub actuator tig mus nce roj thaum saib lub rotor.
ProAct Actuator Specifications
| Tus tsav tsheb Qauv |
420 mA Cntrl teeb liab |
0200 mA Cntrl teeb liab |
420 mA Cntrl teeb liab, 420 mA Tus actuator Pos. Tso zis |
0200 mA Cntrl teeb liab, 420 mA Tus actuator Pos. Tso zis |
| Qauv III MS connector |
9905-386 | 9905-387 | 9905-459 | 9905-392 |
| Qauv III conduit haum |
9905-384 | 9905-385 | N/A | N/A |
| Qauv IV MS connector |
9905-390 | 9905-391 | 9905-461 | 9905-460 |
| Qauv IV conduit haum |
9905-388 | 9905-389 | N/A | N/A |
FAQ
Q: Dab tsi yog qhov yuav tsum tau ua rau kev teeb tsa ib puag ncig ntawm 9905-387?
A: PROACT DRIVER MODULE yog tsim rau kev ua haujlwm hauv ib puag ncig nrog qhov kub ntawm -40℃txog +70℃. Lub module nws tus kheej generates cua sov thiab yuav tsum tau ntsia nyob rau hauv ib tug zoo-ventilated qhov chaw.
Q: Siv 9905-387 rau cov kev xav tau ntawm cov khoom siv hluav taws xob ruaj khov
A: Cov khoom siv hluav taws xob tsis ruaj khov lossis lub zog hluav taws xob ntau tshaj qhov ntau (feem ntau 18-32 VDC) yuav ua rau lub module rov pib dua lossis ua rau lub tswb tsis raug.
Teeb meem nrog lub zog faib hluav taws xob lossis roj teeb feem ntau yog ib qho ntawm cov laj thawj tseem ceeb ntawm kev ua haujlwm tsis ua haujlwm. Yog li ntawd, nws raug nquahu kom siv cov khoom siv hluav taws xob tswj hwm thiab cov av zoo thaum sib xyaw ua ke.
