200-510-076-114 MPC4 yog nruab nrog 4 dynamic teeb liab raws thiab 2 ceev raws, uas tuaj yeem txais cov teeb liab inputs los ntawm ntau hom sensors xws li acceleration, tshaj tawm, thiab hloov chaw. Los ntawm cov channel no, cov cuab yeej tuaj yeem sau ntau yam kev vibration signals thiab ceev cov teeb liab tsim los ntawm cov neeg kho tshuab thaum lub sijhawm ua haujlwm hauv lub sijhawm tiag tiag, yog li muab cov ntaub ntawv hauv qab rau kev tshuaj xyuas thiab ua tiav.

Kev ua haujlwm ntawm 200-510-076-114 MPC4 yog raws li hauv qab no:

- Tau txais cov teeb liab los ntawm cov sensors (xws li eddy tam sim no probes, accelerometers)
--Ua lub teeb liab analog txias
--Hloov mus rau digital signals
--Ua tshuaj xyuas lub sijhawm tiag tiag siv DSP
--Piv nrog lub teeb pib
--Output tswb los yog mus txawv tebchaws signals

Txhawb ntau hom kev lag luam sensors:
--Electromagnetic eddy tam sim no displacement sojntsuam (Proximity)
--IEPE accelerometer
--Speed sensor
--Magnetic-electric rotational speed probe
--TTL rotational ceev teeb liab

Technical Specifications
Qauv	MPC4
Tshooj Naj Npawb	200-510-076-114
Kev piav qhia	Machinery tiv thaiv daim npav
Input channel	4 channels ntawm dynamics + 2 raws kev hloov ceev
Ntau zaus	0.5 Hz - 20 kHz
Teb sijhawm	<15 ms
Keeb kwm	Switzerland
Dimension	26 * 16 * 5cm
Qhov hnyav	0, 56kg

Cov khoom siv ntxiv thiab cov lus qhia siv

01.

Pom zoo ntxiv modules

VM600 khib (6U / ABE040 * ABE042)
Fais fab module (xws li RPS6U)
CPU / Kev sib txuas lus module

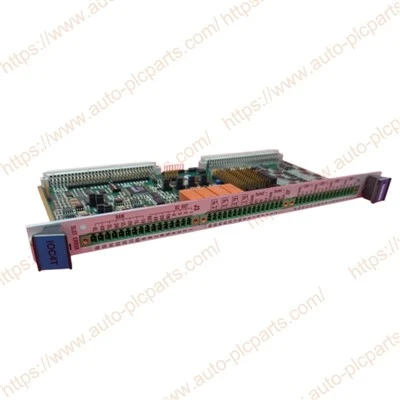

I/O module (xws li IOC4T)
Sensors (xws li eddy tam sim no, accelerometer, thiab lwm yam)

02.

Cov lus pom zoo rau kev teeb tsa

-Nruab lub module rau hauv khib
Ntxig MPC4 rau hauv qhov ntawm VM600 khib
Xyuas kom tseeb tias nws yog tag nrho tso rau hauv lub backplane connector
Fasten lub vaj huam sib luag screws

- Txuas lub sensor
MPC4 txhawb ntau lub tswv yim sensor:
Electromagnetic eddy tam sim no sojntsuam (ncej vibration / hloov chaw)
IEPE accelerometer (cov thawv vibration)
Kev soj ntsuam ceev (Keyphasor)

-Txuas cov zis mus rau qhov system tswj
MPC4 tuaj yeem tso zis:
Relay tswb ceeb toom (Alert / Danger)
Analog tso zis (4-20mA / 0-10V)
Cov ntaub ntawv kev sib txuas lus (VM-Bus → CPU → DCS)

-Software configuration: Cov kev teeb tsa yog ua los ntawm VM600-cov software tshwj xeeb (xws li MPSx):

Cov ntsiab lus configuration muaj xws li:
1️⃣ Xaiv hom ntsuas
Axis vibration (Radial vibration)
Axial hloov chaw (Axial Position)
Casing vibration (Casing Vibration)
Ceev
2️⃣ Teem parameter
rhiab heev (piv txwv li, mV / μm)
Chav tsev (mm / s, μm, g)
Lim ntau

--System debugging thiab ua haujlwm

Fais fab - ntawm kev tshuaj xyuas ntawm LED xwm txheej
Xyuas seb cov teeb liab sensor puas zoo li qub
Calibrate cov nqi ntsuas
Kuaj cov ntsiab lus tswb
Txheeb xyuas cov logic taug kev

Cov hauv qab no yog qee qhov kev thov ntawm 200-510-076-114 MPC4 cov khoom lag luam hauv kev lag luam sib txawv

200-510-076-114 MPC4 yog siv los saib xyuas cov kev vibration ntawm cov khoom siv loj, xws li chav turbines thiab generators. Kev saib xyuas lub sijhawm tiag tiag ntawm kev vibration amplitude, zaus, thiab lwm yam tsis zoo ntawm cov cuab yeej muab lub hauv paus rau kev tu thiab kho cov cuab yeej, zam lub sijhawm poob los ntawm cov khoom siv tsis ua haujlwm thiab ua kom muaj kev ruaj ntseg ntawm cov khoom siv hluav taws xob. Tom qab txhim kho VIBRO-METER MPC4 hauv lub tshuab hluav taws xob thermal, nws tau ua tiav qhov kev vibration tsis zoo ntawm lub tog raj kheej kheej kheej kheej kheej kheej kheej kheej kheej kheej kheej kheej kheej kheej. Tom qab kev soj ntsuam, nws tau pom tias qhov no yog tshwm sim los ntawm qhov tsis muaj zog ntawm cov kabmob lubricating roj zaj duab xis. Kev tuav sijhawm tau ua tiav los tiv thaiv qhov kev nthuav dav ntxiv ntawm qhov txhaum.

Thermal fais fab nroj tsuag

Nws tuaj yeem siv rau kev soj ntsuam kev vibration ntawm turbines. Vim qhov kev ua haujlwm hnyav ntawm turbines, yam xws li dej ntws cuam tshuam thiab xuab zeb hnav tuaj yeem ua rau cov khoom siv puas tsuaj. VIBRO-METER MPC4 tuaj yeem saib xyuas lub xeev kev co ntawm cov turbines thiab qhia ntxov txog qhov ua tsis tau zoo, xws li cov kab nrib pleb hauv cov hniav thiab hnav lub caj dab, pab cov chaw tsim hluav taws xob kom tsim nyog npaj lub sijhawm tu, txo cov nqi tu, thiab txhim kho lub zog tsim hluav taws xob.

Hydropower cog

Hauv kev ua thiab tsim cov khoom siv dav hlau, VIBRO-METER MPC4 tuaj yeem siv los saib xyuas qhov kev vibration ntawm cov cuab yeej ua haujlwm kom ntseeg tau tias kev ua haujlwm raug ntawm cov khoom. Piv txwv li, nyob rau hauv cov txheej txheem ntawm aircraft cav hniav, los ntawm kev saib xyuas cov kev co ntawm lub machining chaw, raws sij hawm kho cov txheej txheem tsis, txo cov kev cuam tshuam ntawm kev co ntawm cov hniav ua kom raug, thiab txhim kho qhov zoo thiab kev cia siab ntawm cov hniav.

Aviation qhov chaw tsim khoom

Cim npe nrov: 200-510-076-114,MPC4 200-510-076-114,VM600 MPC4,Vibro-Meter 200-510-076-114,Vibration Monitoring Card
