GE IC693CHS391G PLC RACK

IC693CHS391G Series 90-30 baseplates muaj nyob rau hauv 5- thiab 10-slot configurations kom tau raws li qhov xav tau ntawm koj daim ntawv thov. Koj tuaj yeem xaiv qhov nthuav dav lossis tej thaj chaw deb baseplates rau ntau lub tshuab khib nyiab, npog qhov deb mus txog 700 ko taw ntawm CPU. GE Fanuc muaj cov qauv-ntev cables rau kev teeb tsa yooj yim thiab muab cov ntaub ntawv xaim rau cov ntawv thov kev cai.

IC693CHS391 Main Function thiab Specifications

Core Functions:

Raws li lub ntsiab backplane / baseboard ntawm 90-30 series PLC, nws muab lub cev mounting slots, hluav taws xob sib txuas ntawm modules, thiab kev sib txuas lus tsheb npav rau CPU modules, I / O modules, thiab kev sib txuas lus modules.

Nws koom ua ke 24VDC lub zog hluav taws xob, uas tuaj yeem siv ncaj qha rau cov logic modules (CPU, kev sib txuas lus modules, thiab lwm yam) thiab qee qhov qis -power I / O modules mounted rau nws. Rau siab - qhov ceev los yog tshwj xeeb I/O modules, feem ntau yuav tsum muaj ib qho ntxiv fais fab mov modules.

Cov ntsiab lus tseem ceeb:

Number of Slots: 8 qhov.

Qhov 1: Feem ntau kho rau mounting lub hwj huam mov module los yog CPU module (nyob ntawm seb hom CPU). Rau CHS391, nws cov khoom siv hluav taws xob sib xyaw yog nyob rau hauv lub khib, yog li qhov 1 yog siv rau CPU module.

Slots 2-8: Siv rau mounting ntau yam I/O modules (digital input/output, analog input/output), kev sib txuas lus modules (xws li Genius bus controllers, Ethernet modules), thiab special function modules.

Lub zog hluav taws xob: 24VDC. Yuav tsum muaj lwm 24VDC tswj fais fab mov.

Fais fab tso zis (Internal): Muab +5VDC logic fais fab rau lub tsheb npav backplane.

Kev Sib Txuas Lus: Muab ib lub tsheb npav uas muaj tus kheej rau 90-30 series, siv rau kev sib pauv cov ntaub ntawv ceev ntawm CPU thiab ntau qhov modules.

Cov yam ntxwv ntawm lub cev:

Hlau casing, muaj zog thiab ruaj khov, haum rau kev lag luam ib puag ncig.

Mounts rau lub txee tswj vaj huam sib luag ntawm DIN rail lossis ncaj bolts.

Pem hauv ntej- kawg nta module latches thiab qhov taw qhia qhov xwm txheej.

Yam System Configuration: Nyob rau hauv tus qauv 90-30 PLC chaw nres tsheb, IC693CHS391 tau teeb tsa raws li hauv qab no:

Qhov 1: Nruab 90-30 series CPU module (xws li IC693CPU351, IC693CPU374, thiab lwm yam).

Slots 2-8: Nruab ntau I / O modules raws li kev tswj hwm. Piv txwv li:

IC693MDL740 (32-point digital input)

IC693MDR390 (16-point relay tso zis)

IC693ALG392 (Analog input / tso zis)

IC693BEM331 (Kev tsav tsheb loj loj)

Kev siv hluav taws xob sab nraud: Yuav tsum muaj qhov sib cais, muaj zog txaus 24VDC hloov hluav taws xob, txuas nrog lub zog hluav taws xob nkag ntawm CHS391.

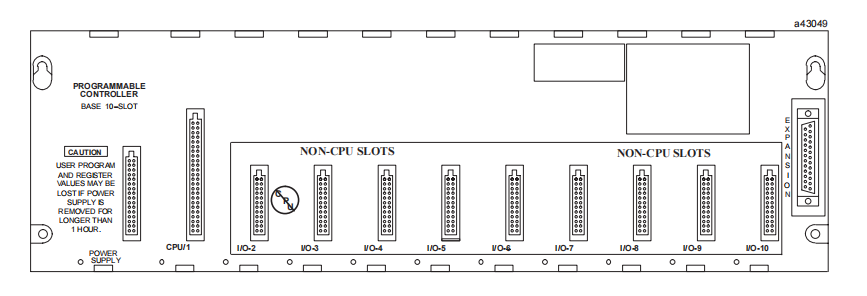

Lub Fais Fab Module yuav tsum tau ntsaws rau hauv qhov chaw sab laug (uas tsis suav nrog) ntawm cov ntawv hauv qab no. Sab laug qhov yog qhov tshwj xeeb loj thiab hom uas tsuas yog
txhawb nqa Power Supply module.

CPU module (los yog ib qho tshwj xeeb Option module) yuav tsum tau muab ntsia rau hauv qhov 1 ntawm cov baseplates. Qhov 1 yog qhov tshwj xeeb loj thiab hom uas tsuas yog txhawb nqa CPU module lossis qhov tshwj xeeb Option module zoo li FIP Chaw Taws Teeb I / O Scanner (IC693BEM330). Qhov 1 yog sau npe CPU/1.

Cov lej suav 2 thiab saum toj no yog qhov tshwj xeeb loj thiab hom uas tsuas yog txhawb nqa I / O lossis Option modules.

Kev nthuav dav thiab tej thaj chaw deb baseplates tau txais kev txhawb nqa, yog li 25-pin D-hom poj niam expansion connector nyob rau ntawm txoj cai kawg ntawm lub hauv paus rau kev txuas mus rau Expansion lossis Remote baseplate.

Txij li thaum CPU yog modular, nws tuaj yeem hloov lossis hloov mus rau lwm hom yog tias xav tau ntxiv.

Tsuas yog ib qho CPU baseplate tau tso cai rau ib lub cev. Yog tias siv ntau tshaj ib lub hauv paus hauv ib qho system, cov khoom ntxiv yuav tsum yog hom Expansion lossis Remote.

Ib tug modular CPU baseplate yog ib txwm muab, los ntawm lub neej ntawd, Khib Naj Npawb 0.
