Khoom Taw Qhia

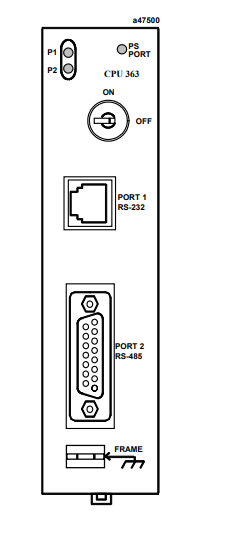

IC693CPU363 yog CPU module ntawm 90-30 series PLC los ntawm GE Company. Nws yuav tsum tau nruab rau hauv tus qauv 90-30 ncej. Thaum lub sij hawm installation, xyuas kom meej tias lub module lub snap-in ib feem haum nruj rau hauv tus ncej lub qhov. Txuas lub module ntawm qhov chaw nres nkoj serial siv VersaPro lossis PME software. Thaum tsim ib qhov project tshiab, xaiv "90-30 Series - IC693CPU363" qauv rau kev sib piv.
Technical Specifications
|
Kev tsim khoom |
GE |
|
Qauv |
TIAB SA 693CPU363 |
| Tshooj Naj Npawb | TIAB SA 693CPU363 |
|
Kev piav qhia |
Tib - qhov CPU module |
|
Keeb kwm |
Teb chaws USA |
|
Dimension |
30 * 25 * 5cm |
|
Qhov hnyav |
0.55kg ib |
IC693CPU363 Product details
Kev ua tau zoo
Tus Txheej Txheem: Nws txais cov txheej txheem ua haujlwm siab dua (piv rau CPU331/341), nrog lub moos ntau dua thiab ua kom lub zog siv tau zoo.
Nco
Tus neeg siv cov logic nco: 256K bytes. Qhov no yog ib qho ntawm nws cov yam ntxwv tseem ceeb tshaj plaws: nws muaj 64 K ntawm RAM, plaub npaug ntawm CPU331 (64K), thiab tuaj yeem ua raws li kev tswj hwm thiab kev tswj hwm.
Cov ntaub ntawv sau npe nco: 256K bytes lossis ntau dua (nyob ntawm firmware version). Nws muaj peev xwm tuav tau ntau cov ntaub ntawv analogue, qauv, cov ntaub ntawv keeb kwm, thiab kev ua haujlwm nyuaj.
Kev ua kom nrawm: nrawm heev, nrog rau qhov tshwj xeeb nrawm dua li ntawm CPU331, nws tuaj yeem ua tiav lub voj voog nrawm dua thiab ua tau raws li qhov xav tau ntawm siab - nrawm tiag tiag - lub sijhawm tswj.
Kev sib txuas lus thiab network ua haujlwm
Kev them nyiaj yug Genius Bus: Raws li kev ua haujlwm siab -Genius tsheb npav maub los, nws muaj peev xwm tswj tau zoo dua.
Muaj cov cuab yeej tswj tau ntau dua Genius, nrog rau kev sib txuas lus ntau dua thiab ua haujlwm tau zoo.
Kev them nyiaj yug rau redundant Genius tsheb npav yog ua tiav ntau dua.
Ethernet kev koom ua ke
Raws tu qauv txhawb Natively txhawb SRTP (Service Request Transport Protocol) ib txwm muaj, uas yog tus qauv Ethernet raws tu qauv rau GE / Emerson cov cuab yeej. Nws tuaj yeem pauv ncaj qha siab - cov ntaub ntawv ceev nrog lub khoos phis tawj sab saud (xws li iFIX, CIMPLICITY SCADA), programming software (PME), thiab lwm yam tswj hwm uas txhawb nqa SRTP.
Simplified architecture: Tsis tas yuav yuav kev ywj pheej Ethernet interface modules (xws li EBM001) ntxiv lawm, uas txo cov nqi, ua kom yooj yim txuas, thiab ua tiav kev sib koom ua ke hauv kev sib koom ua ke ntawm qib tswj.
IC693CPU363 Khoom nta
Programming thiab Software
Programming software: Logic Developer PLC hauv Proficy Machine Edition (PME) yuav tsum tau siv. Yav dhau los versions ntawm VersaPro tej zaum yuav tsis txhawb tag nrho nws cov nta los yog firmware versions.
Programming lus: Txhawb nqa cov duab kos duab thiab cov ntawv sau, thiab tuaj yeem ua tiav nws lub cim xeeb kom zoo dua los sau cov kev pabcuam modular thiab cov txheej txheem nyuaj.
firmware cia: Siv daim npav flash nco pluggable los pab txhawb kev hloov kho firmware thiab kev xa tawm lub cev ntawm cov phiaj xwm phiaj xwm.
Lub cev muaj zog thiab khoom siv hluav taws xob
Puab: Ib qho - qhov dav dav, uas txuag tau ntau qhov chaw khib dua li ua ntej dual -slot CPUs (xws li CPU331).
Kev khiav hauj lwm voltage: 24V DC (powered los ntawm lub backplane).
Qhov taw qhia teeb pom kev zoo: Nruab nrog cov teeb pom kev zoo LED teeb pom kev zoo, suav nrog RUN, OK, BATT, teeb pom kev sib txuas lus chaw nres nkoj, thiab lwm yam.
Real- lub sijhawm moos: Kev sib koom ua ke ntawm cov khoom siv tiag tiag- lub sijhawm teev kom yooj yim cov xwm txheej teev sijhawm teev cia.
IC693CPU363 sawv cev rau lub siab tshaj plaws thev naus laus zis ntawm 90-30 series PLCS. Nws cov txiaj ntsig tseem ceeb suav nrog:
Kev Ua Vajntxwv Ua Haujlwm: Kev ua haujlwm ceev tshaj plaws thiab lub cim xeeb loj tshaj plaws hauv koob
Kev sib xyaw ua ke zoo heev: Ib qho - qhov tsim qhov sib koom ua ke Ethernet thiab Genius tsheb npav
Muaj zog scalability: Txhawb ultra-loj- nplai I/O teeb tsa
Kev sib txuas lus nplua nuj: Txhawb rau ntau yam kev cai thiab kev sib tshuam
Tej yam kev thov scenarios
Loj - cov txheej txheem tswj cov txheej txheem
Kev tsim khoom tsis tu ncua hauv petrochemicals
Pab tswj qhov system rau fais fab nroj tsuag
Loj -tej chaw kho dej
2. Complex mechanical tswj
Qhov chaw nres tsheb tseem ceeb ntawm lub tsheb sib dhos kab
Loj - nplai tshuab luam ntawv
Hlau nruam casting khoom
3. Distributed tswj system
Factory- qib kev soj ntsuam cov cuab yeej
Ntau- cheeb tsam ib puag ncig tswj
Intelligent tsev tswj system
4. Kev sau thiab saib xyuas cov ntaub ntawv
Qhov chaw tseem ceeb ntawm SCADA system
Cov ntaub ntawv ntau lawm yog ua tiav hauv nruab nrab
Zog tswj system
Txawm hais tias cov khoom tau raug txiav tawm lawm, IC693CPU363 tseem ua haujlwm muaj kev ntseeg siab hauv ntau qhov chaw lag luam loj uas twb muaj lawm, tuav cov haujlwm tswj kev ua haujlwm nyuaj tshaj plaws. Nws yog ib qho kev xaiv zoo tshaj plaws rau cov ntawv thov uas xav tau kev ua haujlwm siab, ntau txoj kev sib txuas lus thiab muaj zog scalability, thiab tseem yog ib qho tseem ceeb irreplaceable rau ntau lub tshuab tseem ceeb rau niaj hnub no.
