Khoom Taw Qhia
GE ist200tsvoh1b terminal daim npav servo yog tsuas yog siv nyob rau hauv ge lub cim ceev ceev system rau kev tswj hwm roj turbine thiab chav dej ua tshuab. Nws tuaj yeem tswj cov ntsiab lus tseem ceeb xws li Turbine Ceev, thauj khoom, ntsuas kub, thiab lwm yam kom paub tseeb tias kev ua haujlwm ntawm lub turbine.
Kev Ua Tshwj Xeeb
|
Tsim |
General Electric (GE) |
|
Tus qauv |
Is200tsvoh1bcc |
| Tshooj naj npawb | Is200tsvoh1b |
|
Kev piav txog |

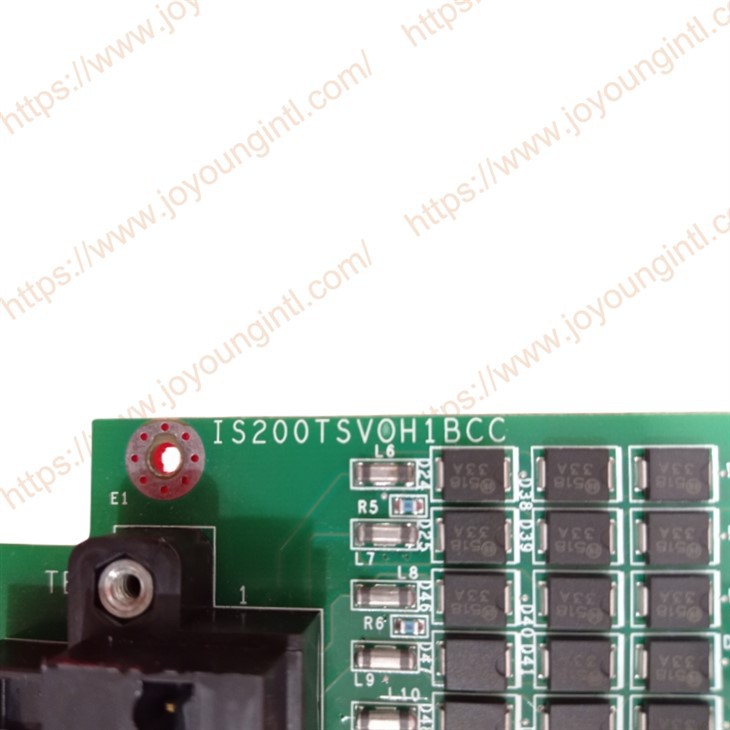

Kos vwm Vi Terminal Board |
|
Lub hauv paus |
Usa |
|
Qho loj dav |
35 * 25 * 8 CM |
|
Qho hnyav |
0. 355kg |
Khoom Paub meej
GE Is200tsvoh1B Khoom Nta:
Channel teeb: Nws yog ib qho {{{0}}} channel i / o board uas lees txais ob servo channel. Txhua channel tuaj yeem txuas mus txog 6 tag nrho cov lus qhia kev pom zoo thiab tuaj yeem lees txais LVDT lossis LV dr tswv yim los ntawm {4}} rau 7.0vrms.
Lub davhlau ya nyob twg: nws tsimnyog-hom davhlau ya nyob twg, uas tau txais kev nkag mus rau ntawm ob lub chaw ntev tam sim no los ntawm ob daim I / O channels.
Sensor Kev Txuas: Txhua lub davhlau ya davhlau tso cai rau peb LVDT lossis LV dr tsom cov sensors kom tau kev xaiv, uas tuaj yeem xaiv, xaiv nruab nrab lossis xaiv qis. Mem tes tus nqi tawm tswv yim yog nruab nrab ntawm 2-14 cmz.
Configurable cuam tshuam kev ua haujlwm: nws tau teeb tsa muaj nuj nqi cuam tshuam, uas tuaj yeem tsim tau raws li qhov xav tau kom tau raws li kev tswj hwm txawv.
Channel teeb: Nws yog ib qho {{{0}}} channel i / o board uas lees txais ob servo channel. Txhua channel tuaj yeem txuas mus txog 6 tag nrho cov lus qhia kev pom zoo thiab tuaj yeem lees txais LVDT lossis LV dr tswv yim los ntawm {4}} rau 7.0vrms.
Lub davhlau ya nyob twg: nws tsimnyog-hom davhlau ya nyob twg, uas tau txais kev nkag mus rau ntawm ob lub chaw ntev tam sim no los ntawm ob daim I / O channels.
Sensor Kev Txuas: Txhua lub davhlau ya davhlau tso cai rau peb LVDT lossis LV dr tsom cov sensors kom tau kev xaiv, uas tuaj yeem xaiv, xaiv nruab nrab lossis xaiv qis. Mem tes tus nqi tawm tswv yim yog nruab nrab ntawm 2-14 cmz.
Configurable cuam tshuam kev ua haujlwm: nws tau teeb tsa muaj nuj nqi cuam tshuam, uas tuaj yeem tsim tau raws li qhov xav tau kom tau raws li kev tswj hwm txawv.
GE ist200tsvoh1b cov lus piav qhia zoo:
Cov lus qhia / tso tawm (TSVO) Terminal Board cuam tshuam nrog ob Electro-hydraulic servo li qub uas ua yeeb yam ntawm Chav / Roj Li Qub. Valve Txoj Haujlwm yog ntsuas nrog LVDTS.
Mus txog rau rau cables txuas rau txhua TSVO. JR1, JS1, thiab JT1 cov txuas txuas txuas rau lub backplane, thiab rau cov kua roj jr5, js5, thiab jt5 rau pem hauv ntej vaj huam sib luag. Txhua Tsvo tuaj yeem txuas rau peb VSVOS. Tsvo muab cov cim yooj yooj yooj yooj yim los ntawm JR1 txuas, thiab kiv cua tawm TMR cim rau JR1, JS1, thiab JT1 Connectors. Plugs jd1 lossis JD2 yog rau kev mus ncig sab nraud los ntawm kev tiv thaiv module.
Is200tsvoh mortib
Muaj peb txoj kev sib txawv ntawm lub nkoj tsevo.
|
Zaj
|
Kev piav txog
|
|
H1B
|
Thawj Tsvo suav nrog txhua hom ua ntej thiab suav nrog tsvoh1b.
|
|
H2B
|
The IS200tsvoh2b siv cov kev hloov pauv Lvdt LVDT kom muaj peev xwm ntawm tus neeg hloov pauv tau tiv thaiv DC offset tsis muaj kev lom zem.
Nrog qee cov ntawv thov siv H1B, qhov kev zam txim siab uas qhia txog lub sijhawm DC offsetly DC tuaj yeem ua rau muaj waveshape distortion. Qhov qhia no kwv yees li 35 MV rms txo nyob rau hauv tus nqi ntawm kev zam voltage. Cov ntawv thov uas muaj cov nplaim luv-luv-tso tawm cov nyhuv ntawm no tshwm sim. Hauv qee cov ntawv thov qhov no tau tsim ntau li ntau tau 5 feem pua hloov pauv ntawm cov lus qhia txog tus nqi. Thaum siv cov kev siv cua nab twg no, qee cov ntawv thov uas siv ntau txoj haujlwm tswv yim lossis LVDT lossis LADRTBE cov lus qhia tseem ceeb tuaj yeem paub lub valve loj tuaj yeem paub lub ntsuas hluav taws xob kis tau lub tswb. Lub tsvoh2b version tau tshwj xeeb tau tsim kom tau tias cov laug cam tau txiav txim thiab taug qab nrog cov hloov pauv tshwj xeeb no.
|
|
H1C
|
Lub tsvoh1c suav nrog kev hloov pauv hloov pauv zoo, thiab ntxiv cov kev txhaj tshuaj me me ntawm LVDT kev tawm tswv yim. Qhov no txhim kho lub system muaj peev xwm los kuaj pom qhov muaj ntawm cov xaim qhib ntawm cov lus qhia kev sib txuas. Cov yeeb yaj kiab no tawm ntawm thaj tsam 1 ma ntawm DC tam sim no nyob rau hauv Lvdt cov tswv yim tawm tswv yim txuas thiab tsis muaj cuam tshuam txog kev ntsuas ntawm AC txoj hauj lwm cov cim qhia. Nws muab kev txhim kho tawm ntawm-ntau-ntau yam 8 V DC kev qhia yuav tsum tau LVDT cov lus qhia swb qhib-Circuit Court. Kev tawm tsam hauv Circuit Court, xws li tau qhia los ntawm Intrinsic kev nyab xeeb (Zener) uas muaj kev cuam tshuam nrog cov teeb meem ntawm LVDT.
|
