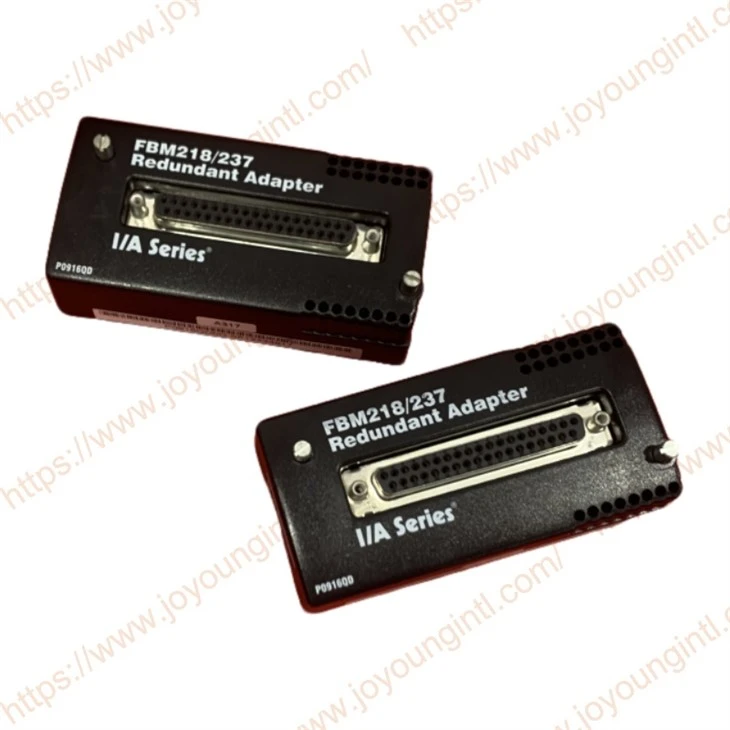

FOXBORO FBM218 / FBM237 P0916QDI/A Series Redundant Adapter yog siv nyob rau hauv I/A Series faib tswj kev sib txuas rau FBM218 thiab FBM237 modules. Qhov no adapter, los ntawm kev tsim ib tug dual -channel redundant qauv, enables lub system hloov mus rau lub backup channel nyob rau hauv cov ntaub ntawv ntawm ib tug tsis ua hauj lwm ntawm lub ntsiab channel, yog li xyuas kom meej uninterrupted teeb liab kis tau tus mob.
Kev txiav tawm tuaj yeem siv nrog ib leeg FBM237 lossis nrog ib khub rov ua dua (ob FBM237s). Thaum siv nrog ib tug redundant module khub, qhov kev txiav txim sib dhos yog txuas mus rau lub baseplate siv ib tug redundant adapter (RH916QD (supersedes P0916QD)).
Technical Specifications
|
Hom |
FOXBORO |
|
Qauv |
FBM218/FBM237 |
|
Tshooj Naj Npawb |
FBM218/237 P0916QD |
|
Kev piav qhia |
I/A Series REDUNDANT ADAPTER |
| Muaj nuj nqi | Installation, fais fab mov, teeb liab kev twb kev txuas |
|
Keeb kwm |
Teb chaws USA |
|
Dimension |
8 * 6 * 5cm |
|
Qhov hnyav |
0.20 kg ib |
Khoom Paub meej
FBM218/237 P0916QD txhawb DIN rail installation. Cov kauj ruam installation:
Kho lub hauv paus
Txuas cov khoom siv hluav taws xob thiab cov teeb liab
Ntxig lub module
Xyuas qhov kev sib txuas
Lub hauv paus no txhawb nqa lub zog faib ua haujlwm:
Muab lub zog rau lub module
Tiv thaiv kom tsis txhob muaj hluav taws xob hloov pauv los ntawm kev cuam tshuam rau lub module ua haujlwm
Txhawb kev ua haujlwm tsis tu ncua ntawm qhov system
Field I/O signals txuas mus rau FBM subsystem ntawm DIN rail -mounted hluav taws xob passive termination sib dhos. TAs rau FBM237 module muaj nyob rau hauv cov ntaub ntawv hauv qab no:
Compression ntsia hlau hom siv Polyamide (PA) khoom.
Txhua FBM237 Termination Assembly thiab nws cov kab txuas txuas txuas muab kev sib txuas ntawm yim 2-xaim analog tso zis teeb liab thiab FBM237 Channel cais tawm 0 txog 20 mA Module.
Termination Assembly (RH917QZ (supersedes P0917QZ)) muaj xws li ua -nyob rau hauv bypass jacks rau txhua qhov tso zis channel. Lub bypass jacks txais ib lub bypass plug los ntawm I/A Series Output Bypass Station (Foxboro® P/N P0900HJ) lossis lwm qhov chaw 20 mA sab nraud. Qhov kev xaiv no yuav tsum raug txiav txim siab rau cov ntawv thov uas tswj cov khoom tsim tawm thaum xav tau kev saib xyuas.
Ib qho kev tshem tawm cable txuas rau DIN rail -mounted TA mus rau FBM ntawm lub teb txuas ntawm Modular baseplate uas FBM tau teeb tsa. Termination cables muaj nyob rau hauv cov ntaub ntawv hauv qab no:
Cov txheej txheem ntawm polyurethane yog ua los ntawm cov yas
Tsawg Smoke Zero Halogen (LSZH).
Termination cables muaj nyob rau hauv ntau qhov ntev, txog li 30 meters (98 ko taw), tso cai rau lub rooj sib txoos txiav tawm mus rau hauv lub qhov rooj lossis hauv ib qho chaw nyob ib sab. Saib Table 3 rau ib daim ntawv teev cov cables siv nrog TAs rau FBM237 module.
Q & A
Q: Lub luag haujlwm tseem ceeb ntawm P0916QD yog dab tsi?
A: Siv rau kev ua tiav kev sib txuas tsis tu ncua ntawm FBM218 / FBM237 module
Q: Cov modules twg cov khoom no siv rau?
A: Nws yog feem ntau siv rau FBM218 (kev tawm tswv yim sib cais) thiab FBM237 (analog output) modules.
Q: Dab tsi yog redundant functionality?
A: Redundancy hais txog qhov xwm txheej uas ob lub modules ua haujlwm ib txhij.
Q: Yuav ua li cas rau nruab P0916QD?
A: Nws yog ntsia nruab nrab ntawm lub hauv paus module thiab lub redundant module thiab yog siv ua ke nrog Baseplate.
