Technical Specifications
|
Tsim |
BENTLY NEVADA |
|
Qauv |
3500/42M-01-00 |
|
Tshooj Naj Npawb |
3500/42M 176449-02 |
|
Kev piav qhia |
Proximitor/Seismic Module |
|
Keeb kwm |
Teb chaws USA |
|
Dimension |
26 * 26 * 5cm |
|
Qhov hnyav |
0.8kg ib |

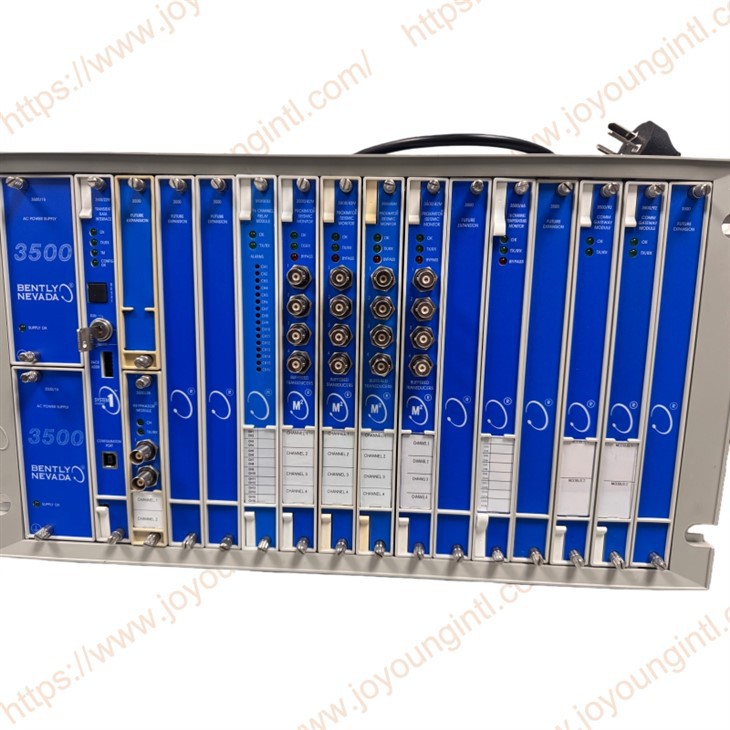

Khoom Paub meej

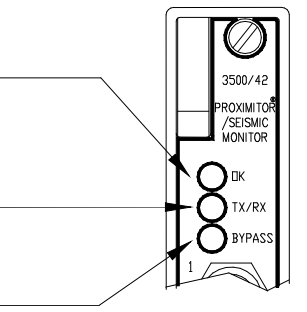

Cov LEDs ntawm lub vaj huam sib luag pem hauv ntej ntawm Proximitor/Seismic Monitor 3500/42M qhia txog kev khiav hauj lwm ntawm lub module raws li qhia hauv daim duab hauv qab no.
OK:TX/RXFlashes ntawm tus nqi uas cov lus yogtau txais thiab kis tau.
TX/RX:Flashes ntawm tus nqi uas cov lus yogtau txais thiab kis tau.
BYPASS:Qhia tias qee tus saibkev ua haujlwm raug txwv ib ntus.
Configuration Information
1.3500/42M-01-00 Proximitor/Seismic Monitor Configuration Options
Qhov Chaw: Qhov chaw ntawm tus saib hauv 3500 khib (2 txog 15).
Khib Hom: Hom Rack Interface Module ntsia hauv khib (Standard lossis TMR).
Configuration ID: Ib tus cim rau - tus cim cim uas tau nkag thaum lub teeb tsa raug rub mus rau 3500 khib.
2. Qhov Chaw Tawm Tawm / Tso Tawm Module Hom
Daim teb I/O tso cai rau koj txheeb xyuas hom I/O Module uas txuas rau lub monitor (Cov kev xaiv xaiv yuav tsum pom zoo nrog I/O module ntsia).
Discrete I/O:Siv thaum txhua tus Proximitor/Seismic Monitor thiab Proximitor/SeismicDiscrete I/O Module raug teeb tsa rau tus qauv lossis tsis yog - rov ua duadaim ntawv thov.
Discrete Internal I/O: Lub transducer teb thaiv txuas ncaj qha mus rau I / O module.
Discrete Sab Nraud I / O:Lub transducer teb thaiv thaiv yog txuas nrog External Termination Blockthiab tom qab ntawd dhau los ntawm Sab Nraud Termination Block mus rau I / O modulelos ntawm 25-pin cable. Lub recorder teb xaim txuas nrog ib qhoExternal Termination Block thiab ces routed los ntawm External TerminationThaiv mus rau I / O module los ntawm 9-pin ca.
Prox/Accel Internal Barrier I/O: Lub transducer teb thaiv txuas ncaj qha mus rau Proximitor/Seismic Monitor Internal Barrier I/O Module. Nco ntsoov tias xaiv qhov kev xaiv Prox/Accel Internal Barrier I/O yuav lov tes taw qee yam kev xaiv hom transducer.
Prox/Velom Internal Barrier I/O:Lub transducer teb xaim txuas ncaj qha mus rau Proximitor / SeismicSaib xyuas Internal Barrier I/O Module. Nco ntsoov tias xaiv Prox/VelomInternal Barrier I/O xaiv yuav lov tes taw tej yam transducer hom kev xaiv.
Velom Internal Barrier I/O:Lub transducer teb xaim txuas ncaj qha mus rau Proximitor / SeismicSaib xyuas Internal Barrier I/O Module. Nco ntsoov tias xaiv Velom InternalKev xaiv Barrier I/O yuav lov tes taw qee yam kev xaiv transducer.
TMR kuv/:Siv thaum peb zoo tib yam nyob ib sab saib thiab peb TMR I/O Modulestau nruab rau daim ntawv thov TMR. Ob lub discrete thiab bussedconfigurations siv tib I / O module sab nraud, tab sis yog wired txawvraws li cov kab lus hauv qab no.
TMR I/O (Discrete):Qhov kev xaiv no yog siv thaum redundant transducers thiab teb thaivxav tau. Ib txheej ntawm kaum ob transducers yog siv los muab cov tswv yim tawm tswv yim raupeb qhov zoo ib yam nyob ib sab saib. Txhua transducer txuas nrog ib qhoExternal Termination Block thiab ces xa mus rau Proximitor/Seismic TMRI/O Module siv 25-pin cable. Lub kaw lus teb thaiv txuas nrogib qho External Termination Block thiab ces routed los ntawm Sab nrauvTermination Block rau Proximitor / Seismic TMR I / O Module los ntawm 99-pin cable.
TMR I/O (Bussed) Qhov nokev xaiv yog siv thaum redundant transducers thiab teb thaiv tsis yogxav tau. Ib txheej ntawm plaub transducers yog muab rau peb zoo tib yamnyob ib sab saib. Txhua lub transducer txuas nrog Bussed Sab NraudTermination Block, thiab tom qab ntawd Bussed External Termination Block yogtxuas nrog Proximitor/Seismic TMR I/O Modules siv peb 25-pinkab. Lub kaw lus kaw xov hluav taws xob txuas nrog rau Sab Nraud TerminationThaiv thiab ces routed los ntawm External Termination Block mus rau lubProximitor/Seismic TMR I/O Module los ntawm 9-pin cable.
Kev Ntsuas Ntsuas Ntsuas Ntsuas Ntsuas
Cov duab hauv qab no qhia txog kev teeb tsa kev sim rau kev txheeb xyuas Proximitor/Seismic Monitor 3500/42M-01-00. Cov cuab yeej ntsuas yog siv los simulate lub teeb liab transducer, thiab lub khoos phis tawj lub khoos phis tawj yog siv los soj ntsuam cov zis tawm ntawm lub khib.

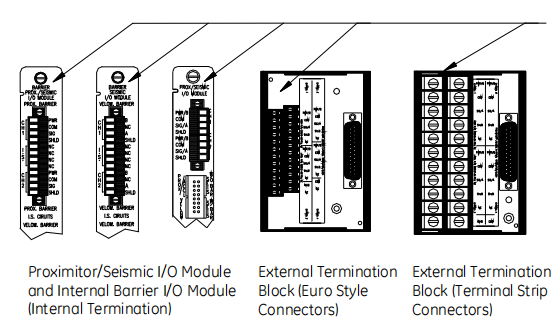

Transducers tuaj yeem txuas nrog 3500 khib hauv ntau txoj hauv kev. Nyob ntawm qhov kev xaiv xaim rau I / O module ntawm koj lub monitor, txuas cov cuab yeej kuaj rau lub monitor siv ib qho ntawm cov hauv qab no:
